RUNNER -RS Series

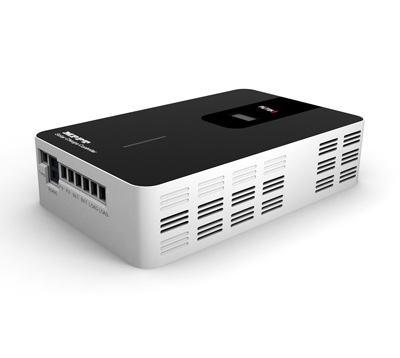

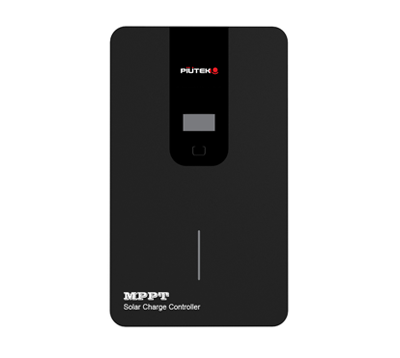

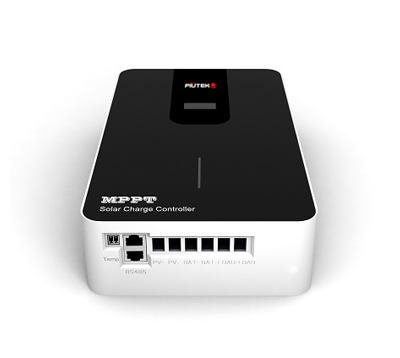

MPPT Solar Smart Digital Controller
Product name： Ipandee
Product model： RUNNER -RS
Time： 2021-10-21
MODEL:
Model: RUNNER -RS
System voltage: DC12V/24V/36V/48V automatic identification
Rated current: 40A;50A;60A;80A;100A
Maximum PV (voc) voltage: 150V
INTRODUCTION:
Runner runs, 2021, my off-grid system
A new generation of intelligent digital MPPT solar controller
1, high-end design, color screen, touch button
2, four-stage charging to extend battery life
3, tracking efficiency up to 99.5%
4, perfect protection function
5, expandable APP, host computer, and unlimited parallel connection
6, monitor the entire system status, diagnose system matching, etc.
CHARACTERISTICS:
1ã€High-efficient MPPT algorithm, MPPT efficiency ≥99.5%.
2ã€Support Seal/Gel/Flooded battery and customized batteries.
3ã€Four types of load mode selection: ON/OFF, PV voltage control,
4ã€Dual Time control, PV+Time control.
5ã€Current-limited charging function.
6〠High definition LCD display.
7ã€Intelligent interaction experience.
8ã€Dual RS485 communication ports, support for parallel communication.
9ã€Support PC and APP (Android & iOS) monitoring.
10ã€CE, RoHS, FCC certifications.
