EXPLORER-NS Series
Self-cooling MPPT Solar Charge Controller
Product name： Ipandee
Product model： EXPLORER-NS
Time： 2021-10-21
INTRODUCTION:
A new generation of MPPT solar intelligent digital controller
1, self-cooling, protection grade IP43
2, beautiful design, touch buttons, internal and external repair
3, four-stage charging to extend battery life
4, tracking efficiency as high as 99.8%
5, perfect protection function
6, can expand APP, host computer, and unlimited parallel
7, can monitor the entire system status, determine system matching, etc.
MODEL:
System voltage: DC12V/24V/36V/48V automatic identification
Rated current: 20A 30A 40A 50A 60A
Maximum PV (voc) voltage: 150V
CHARACTERISTICS:
1ã€MPPT efficiency 99.5%, conversion efficiency 97%
2ã€All responsive design, more efficient, more stable
3ã€OLED blue display status information
4ã€Built-in lithium battery activation function
5ã€Support lead-acid batteries, lithium batteries and all kinds of battery
6ã€Protection function to maintain stable operation of battery or lead-acid battery system

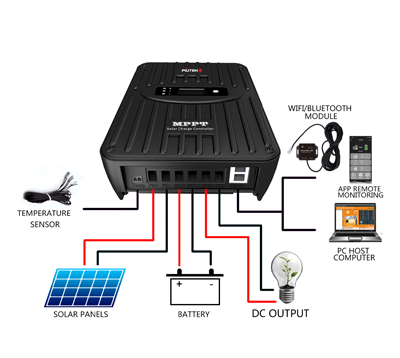

7ã€Support remote monitoring of PC, wired instrument, wireless module APP
8ã€Dual RJ45 interfaces, integrated management and secondary development
9ã€CE, FCC and Rohs certification
